Awnings · 270° Double-Pole / Gen 3.0 full light
XRF27-32LED 270° Double-Pole Full-Light Fan-Shaped (3rd Gen.)
Model XRF27-32LED / XRF27-325LED|12V tri-colour full-length light strip
Third generation: full-length 12V tri-colour lighting, touch switch, power-bank pocket.
Our current-generation 270° fan-shaped awning. A 12V tri-colour light strip runs the full length of the frame, switched by touch, with an integrated power-bank pocket so the cable never crosses camp. 600D Oxford canopy, aluminium alloy double poles, four adjustable round-tube legs with 1.2 mm wall, SBS zippers, back-plate end caps and a stainless steel top pin. 1000D PVC outer cover included. Available in 2 m (XRF27-32LED) and 2.5 m (XRF27-325LED).
- 12V tri-colour full-length light strip
- Touch switch and power-bank pocket
- 600D Oxford fabric canopy
- 4 adjustable round-tube legs, 1.2 mm wall
- SBS zippers and back-plate end caps
- 2 m and 2.5 m sizes, 6 in-stock colours
Features
Engineered, not assembled.

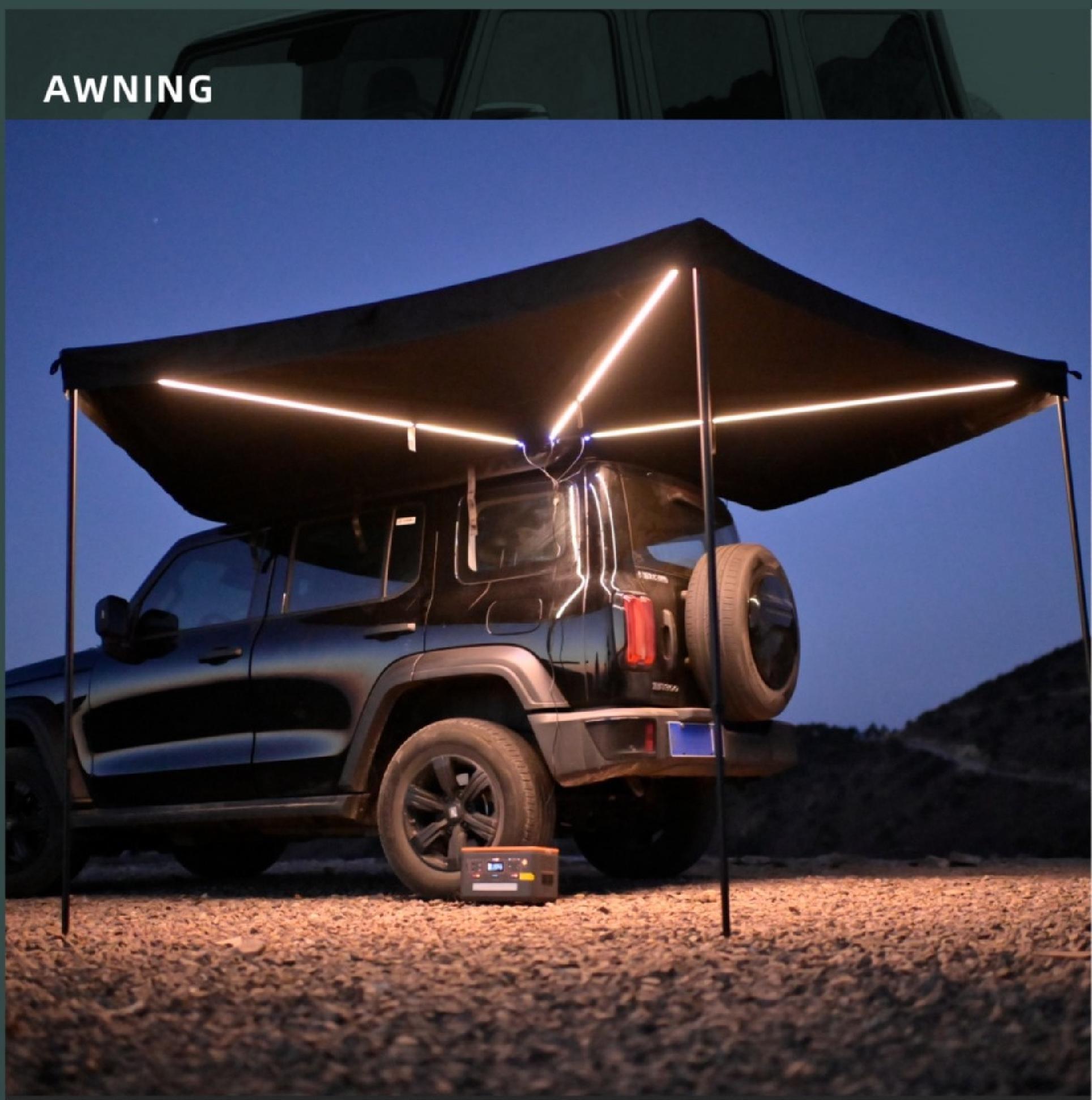

Full-Length 12V Tri-Colour Light
Light runs the whole frame, not just one arm — cool, warm and amber from the same strip, so camp is lit evenly.
Touch Switch
Tap to cycle colour and brightness. No fumbling with an inline switch in the dark.
Integrated Power-Bank Pocket
A sewn-in pocket holds the battery at the frame, so there's no loose cable running down a support leg.
Four Adjustable Round-Tube Legs
Four telescopic legs with 1.2 mm wall, adjustable to 2.5 m — the most stable configuration in the range.
SBS Zippers & End Caps
SBS zippers on the cover and back-plate end caps that seal the extrusion against water and grit.
Specifications
Technical data.
Materials & construction
- Canopy: 600D Oxford fabric
- Frame: Aluminium alloy double poles
- Support poles: Round tube, 1.2 mm wall, adjustable to 2.5 m
- Lighting: 12V tri-colour full light strip with touch switch
- Outer cover: 1000D PVC with SBS zipper
- Hardware: Stainless steel top pin, back-plate end caps
Customisation options
Colour / Finish: Olive green
Final colour, trim and private-label branding confirmed at order — MOQ and lead-time on request.

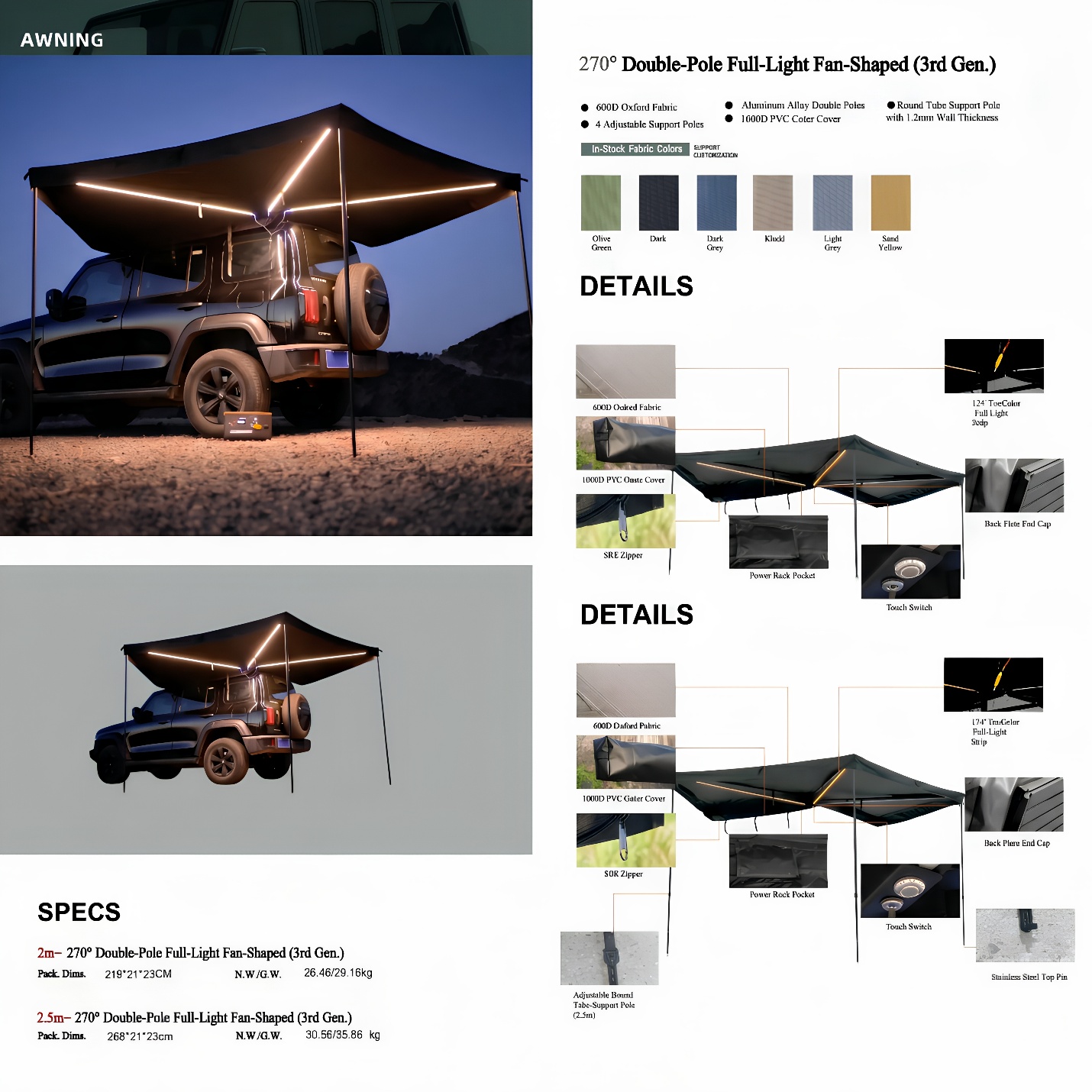

Technical Details
Hover a component to explore the build.
Generation 3.0 — full-length 12V tri-colour lighting, touch switch, power-bank pocket and a four-leg frame.
Feature 1 of 8
600D Oxford Fabric
600D Oxford canopy over the full 270° fan.
Dimensions & Specs
Numbers you can plan around.
- Generation3.0 (full light)
- ModelXRF27-32LED (2 m) / XRF27-325LED (2.5 m)
- Fabric600D Oxford
- Lighting12V tri-colour full light strip, touch switch
- Support poles4 adjustable round tube, 1.2 mm wall, to 2.5 m
- Outer cover1000D PVC with SBS zipper
- Packing (2 m)219 × 21 × 23 cm
- Weight (2 m)26.48 kg N.W. / 29.16 kg G.W.
- Packing (2.5 m)268 × 21 × 23 cm
- Weight (2.5 m)30.56 kg N.W. / 33.88 kg G.W.
Pricing
Pick a model, get a quick quote.
Prices in USD, EXW, excluding tax and freight. Volume discounts apply — send your quantity for a formal quotation.
| Select | Model | Size | Packed size | N.W. / G.W. | Price / unit |
|---|---|---|---|---|---|
| XRF27-32LED | 2.0 m | 219 × 21 × 23 cm | 26.48 / 29.16 kg | $286 | |
| XRF27-325LED | 2.5 m | 268 × 21 × 23 cm | 30.56 / 33.88 kg | $305 |
EXW price per unit. MOQ 20 pcs per model, samples welcome. Volume pricing and freight quoted with your order.
Choose your colour
Standard stock colours. Custom colourways available for OEM and ODM orders.
Add customisation
Tick what you need and send it straight to our team. Fees are confirmed with your quotation.
XRF27-32LED · 2.0 m · Olive green · 20 pcs
$286 × 20 = $5,720 USD
$5,720 USD
Indicative only. EXW, excluding tax, freight and customisation fees. We confirm the final price in your quotation.
Inquiry
Get pricing for XRF27-32LED.
B2B only. We'll respond within 24 hours with wholesale pricing, MOQ and freight estimates to your port.
