Awnings · 270° Double-Pole / Gen 2.0 with light

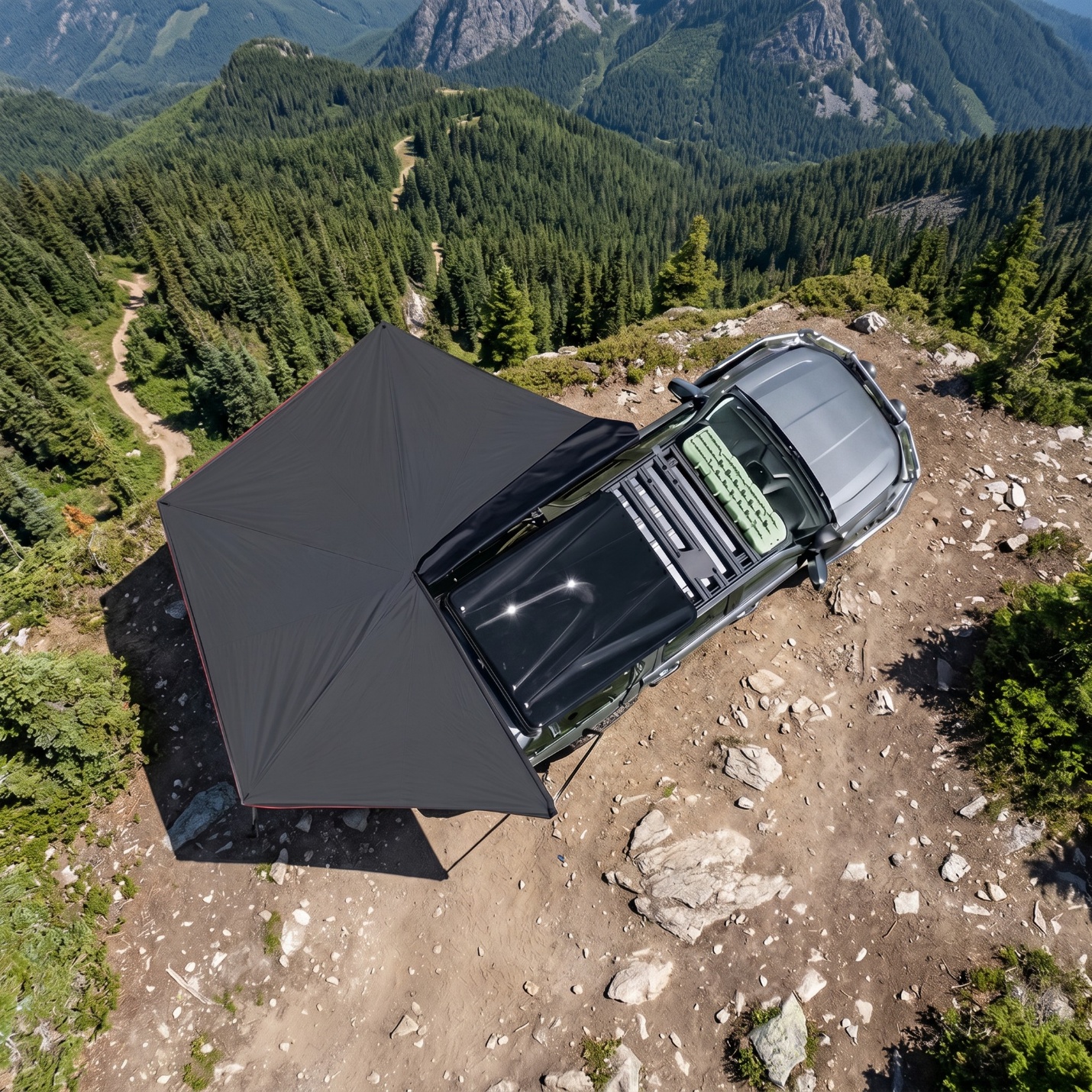

XRF27-22LED 270° Double-Pole Fan-Shaped (With Light, 2nd Gen.)
Model XRF27-22LED / XRF27-225LED|600D Oxford fabric canopy
Second generation: plum-blossom poles, anti-detachment LED strip, two legs instead of four.
The 2nd generation 270° fan-shaped awning. Custom plum-blossom profile poles with 1.2 mm wall thickness replace the round tube for higher torsional stiffness, and an anti-detachment aluminium LED strip runs inside the frame so the light stays where you put it. Only two adjustable support legs are needed, so setup is faster and pack-down is cleaner. 600D Oxford canopy, 1000D PVC outer cover, stainless steel top pin. Available in 2 m (XRF27-22LED) and 2.5 m (XRF27-225LED).
- 600D Oxford fabric canopy
- Anti-detachment aluminium LED light strip
- Custom plum-blossom poles, 1.2 mm wall
- Only 2 adjustable support poles
- Stainless steel top pin
- 2 m and 2.5 m sizes, 6 in-stock colours
Features
Engineered, not assembled.

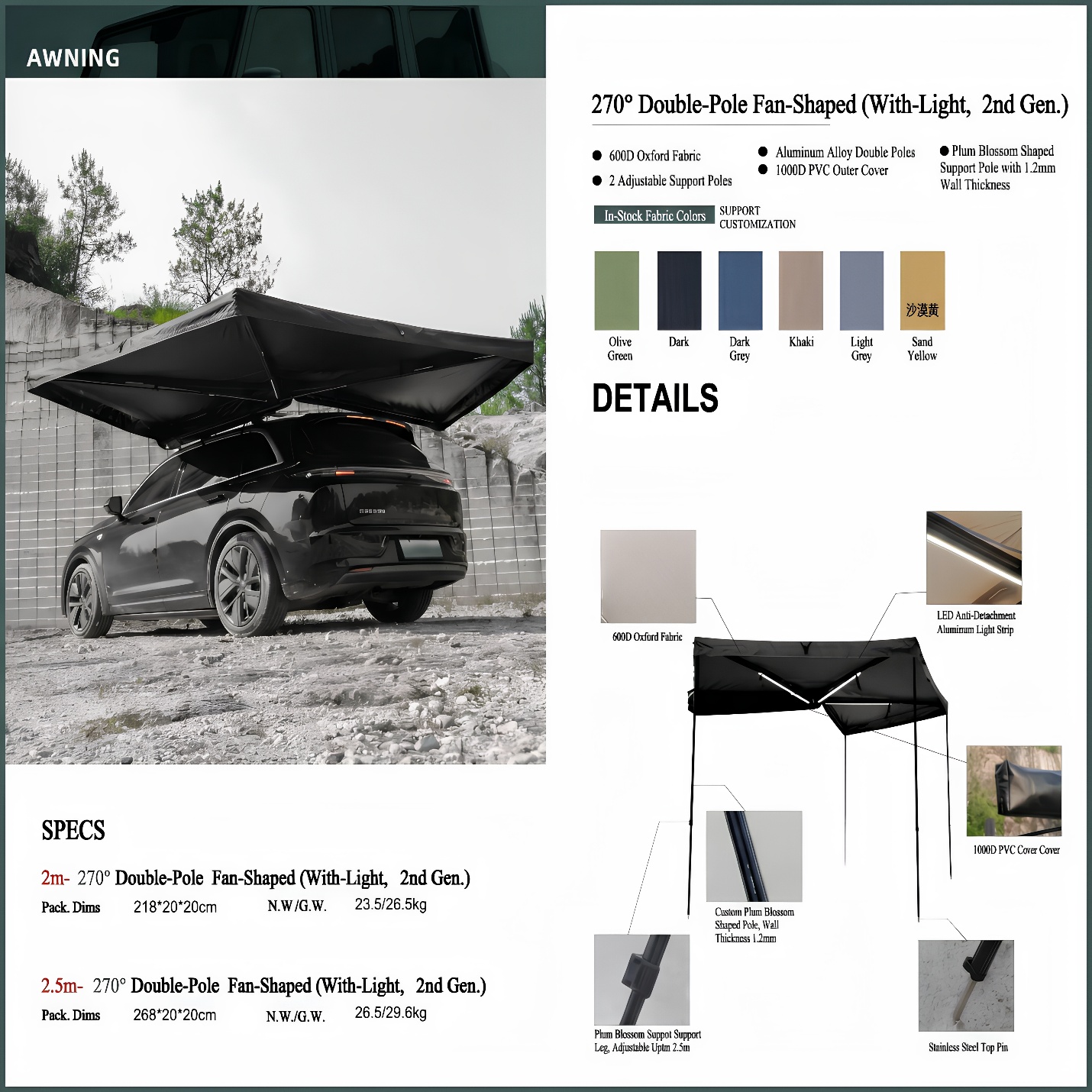

Plum-Blossom Profile Poles
A custom-extruded plum-blossom cross-section with 1.2 mm wall — stiffer under twist than a round tube of the same weight.
Anti-Detachment LED Strip
The aluminium-housed LED strip locks into the arm channel. No cable-ties, no lights dropping into your dinner.
Two-Leg Setup
Two adjustable plum-blossom support legs, extendable to 2.5 m — half the poles of Gen 1.0, quicker to pitch.
Stainless Steel Top Pin
The pivot pin is stainless, so salt, mud and dust don't seize the hinge over a season of travel.
1000D PVC Outer Cover
Heavy transit cover that survives corrugations, tree strikes and highway grit.
Specifications
Technical data.
Materials & construction
- Canopy: 600D Oxford fabric
- Frame: Aluminium alloy double poles
- Support poles: Plum-blossom profile, 1.2 mm wall, adjustable to 2.5 m
- Lighting: Anti-detachment aluminium LED strip
- Outer cover: 1000D PVC
- Hardware: Stainless steel top pin
Customisation options
Colour / Finish: Olive green
Final colour, trim and private-label branding confirmed at order — MOQ and lead-time on request.

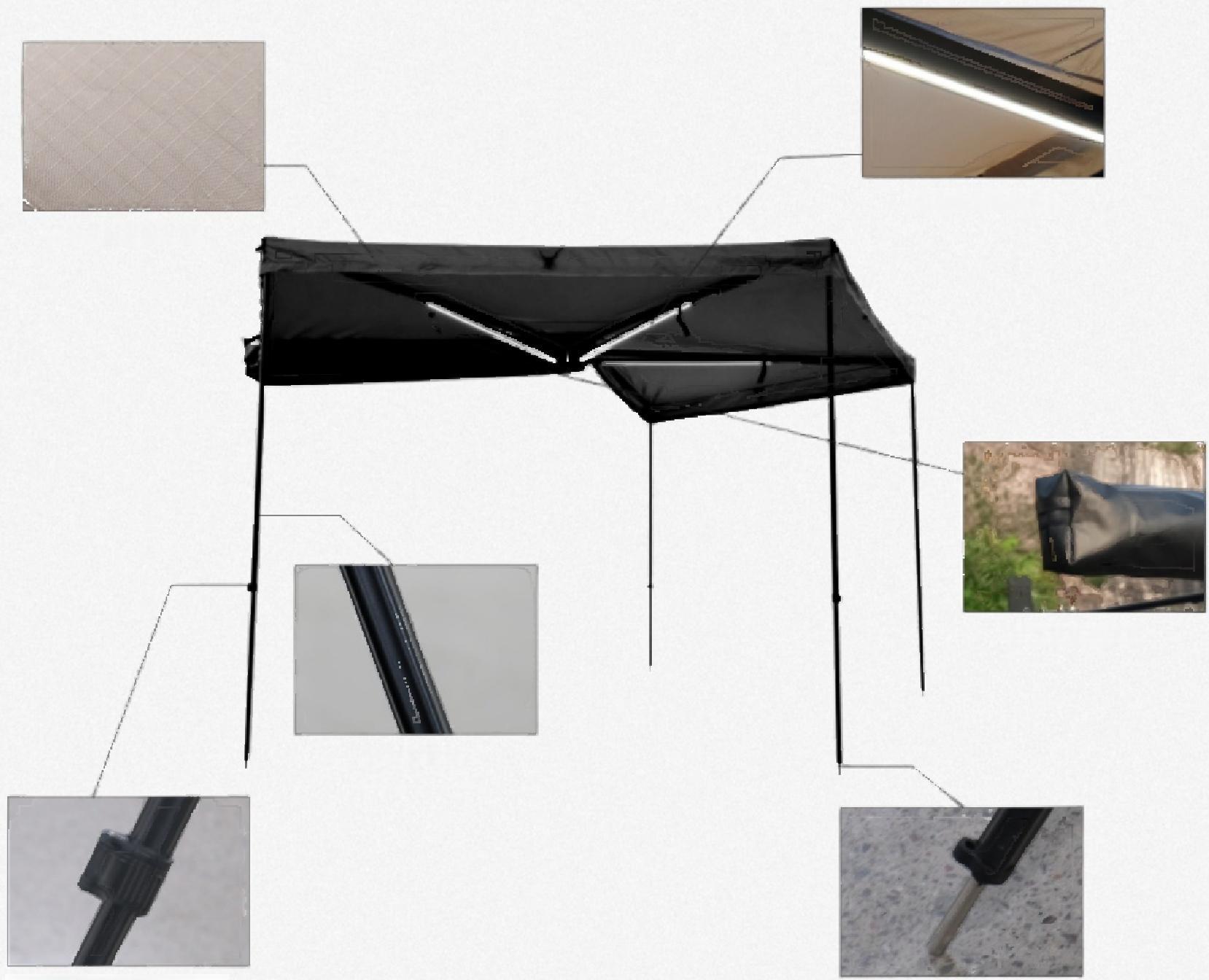

Technical Details
Hover a component to explore the build.
Generation 2.0 — custom plum-blossom poles, an anti-detachment aluminium LED strip and a two-leg setup that pitches faster.
Feature 1 of 6
600D Oxford Fabric
The same 600D Oxford canopy, cut for the standard 270° fan.
Dimensions & Specs
Numbers you can plan around.
- Generation2.0 (with light)
- ModelXRF27-22LED (2 m) / XRF27-225LED (2.5 m)
- Fabric600D Oxford
- LightingAnti-detachment aluminium LED strip
- Support poles2 adjustable, 1.2 mm wall, to 2.5 m
- Outer cover1000D PVC
- Packing (2 m)218 × 20 × 20 cm
- Weight (2 m)23.5 kg N.W. / 26.5 kg G.W.
- Packing (2.5 m)268 × 20 × 20 cm
- Weight (2.5 m)26.5 kg N.W. / 29.6 kg G.W.
Pricing
Pick a model, get a quick quote.
Prices in USD, EXW, excluding tax and freight. Volume discounts apply — send your quantity for a formal quotation.
| Select | Model | Size | Packed size | N.W. / G.W. | Price / unit |
|---|---|---|---|---|---|
| XRF27-22LED | 2.0 m | 218 × 20 × 20 cm | 23.50 / 26.50 kg | $249 | |
| XRF27-225LED | 2.5 m | 268 × 20 × 20 cm | 26.50 / 29.60 kg | $265 |
EXW price per unit. MOQ 20 pcs per model, samples welcome. Volume pricing and freight quoted with your order.
Choose your colour
Standard stock colours. Custom colourways available for OEM and ODM orders.
Add customisation
Tick what you need and send it straight to our team. Fees are confirmed with your quotation.
XRF27-22LED · 2.0 m · Olive green · 20 pcs
$249 × 20 = $4,980 USD
$4,980 USD
Indicative only. EXW, excluding tax, freight and customisation fees. We confirm the final price in your quotation.
Inquiry
Get pricing for XRF27-22LED.
B2B only. We'll respond within 24 hours with wholesale pricing, MOQ and freight estimates to your port.
