Awnings · 180° Double-Pole / Gen 2.0 with light
XRF18-22LED 180° Double-Pole Fan-Shaped Awning (With Light, 2nd Gen.)
Model XRF18-22LED / XRF18-225LED|600D Oxford fabric canopy
Half-circle shade with an anti-detachment LED strip and two adjustable legs.
A 180° fan-shaped awning built on aluminium alloy double poles, with an anti-detachment aluminium LED light strip running inside the arm channel. 600D Oxford canopy, 1000D PVC outer transit cover, stainless steel top pin and two adjustable round-tube support poles with 1.2 mm wall thickness, extendable to 2.5 m. Available in 2 m (XRF18-22LED) and 2.5 m (XRF18-225LED), six in-stock fabric colours, customisation supported.
- 600D Oxford fabric canopy
- Anti-detachment aluminium LED light strip
- Aluminium alloy double poles
- 2 adjustable support poles, 1.2 mm wall
- 1000D PVC outer cover
- 2 m and 2.5 m sizes, 6 in-stock colours
Features
Engineered, not assembled.

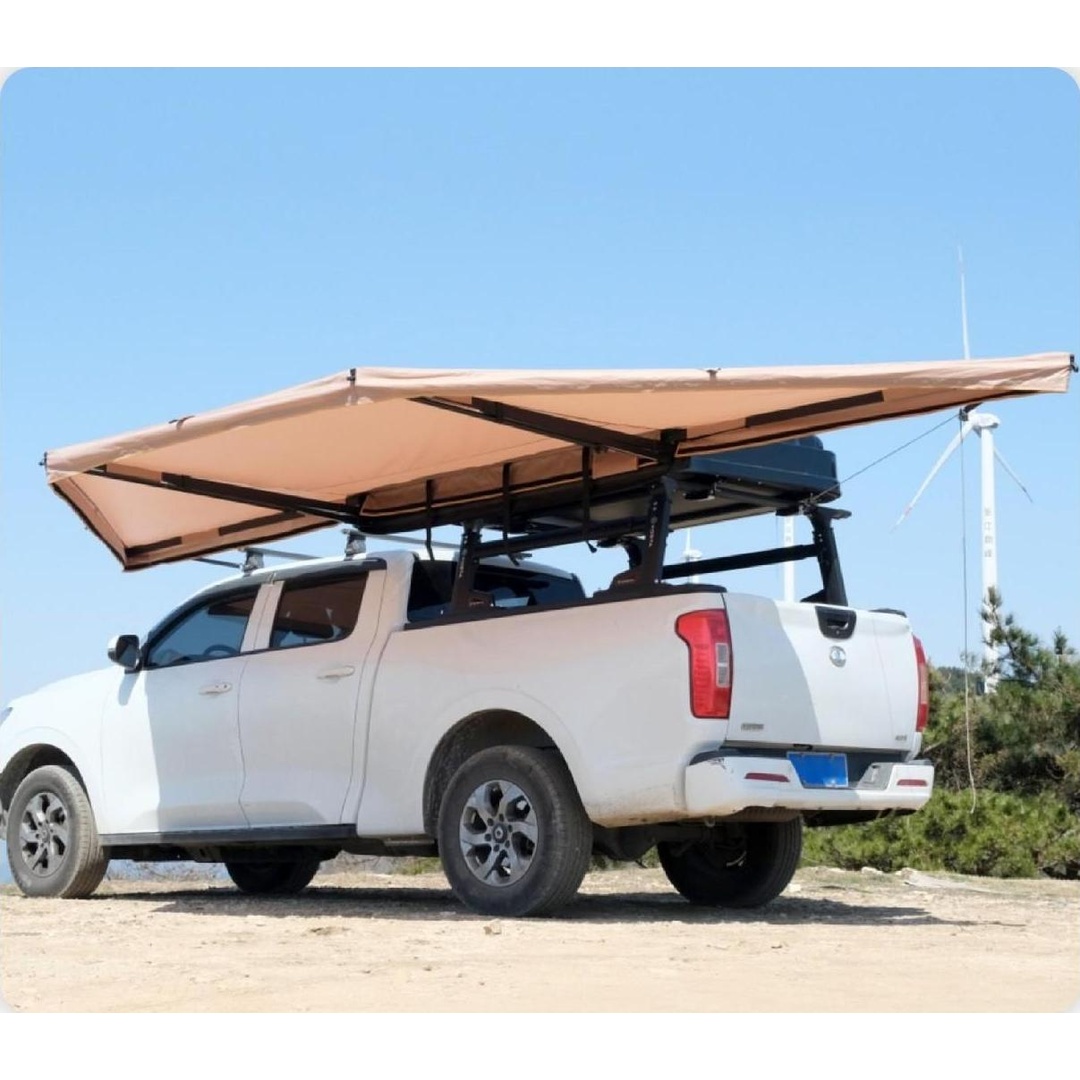

Double-Pole Frame
Aluminium alloy double poles hold the fan shape tight, so the canopy stays flat instead of flapping in side wind.
Anti-Detachment LED Strip
The aluminium-housed LED strip locks into the arm channel — no cable ties, no lights dropping onto the table.
Two-Leg Setup
Two adjustable round-tube legs with 1.2 mm wall, extendable to 2.5 m. Quick to pitch, easy to level on rough ground.
1000D PVC Outer Cover
Heavy transit cover that handles corrugations, tree strikes and highway grit.
Stainless Steel Top Pin
Stainless pivot pin keeps salt, mud and dust from seizing the hinge.
Specifications
Technical data.

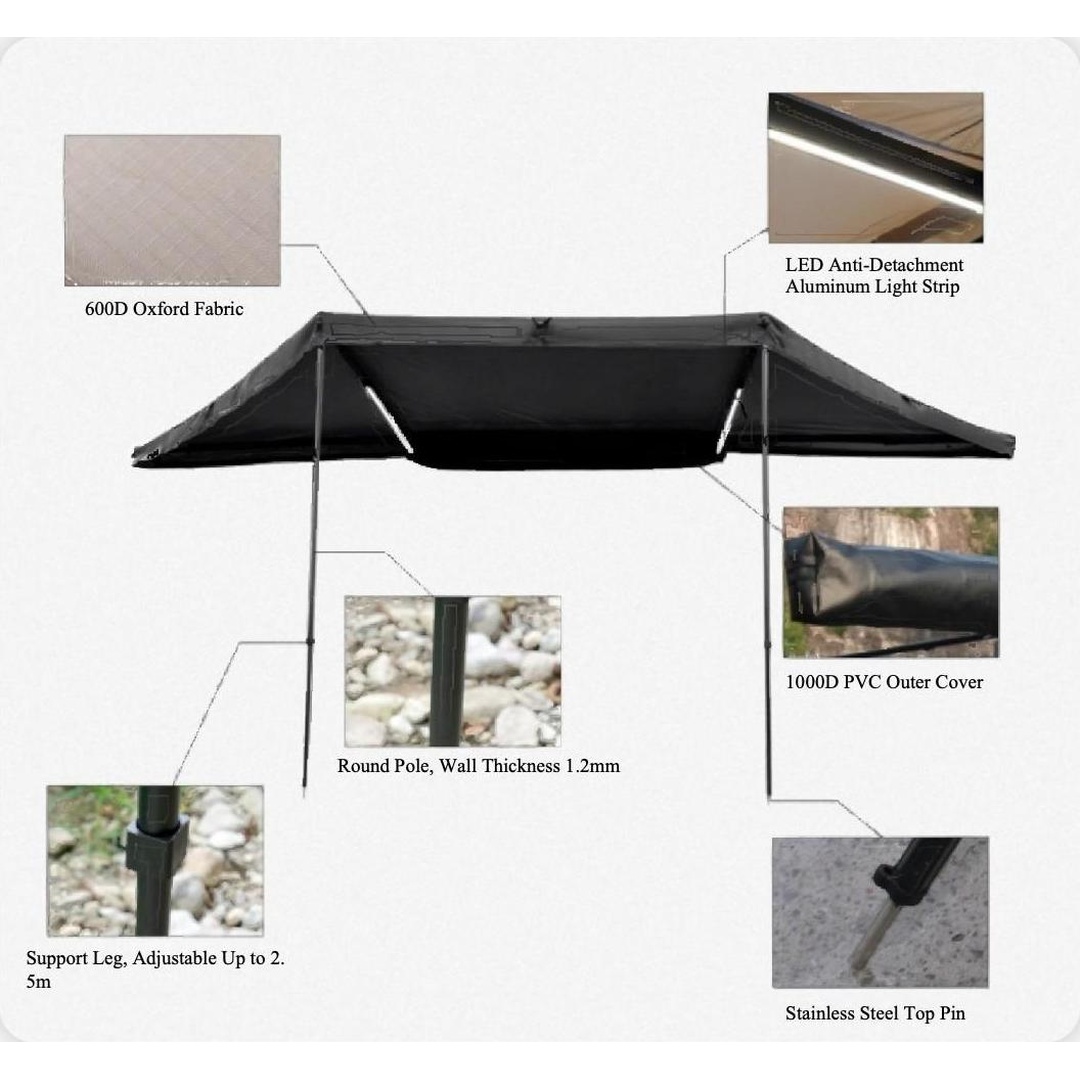

Materials & construction
- Canopy: 600D Oxford fabric
- Frame: Aluminium alloy double poles
- Support poles: Round tube, 1.2 mm wall, adjustable to 2.5 m
- Lighting: Anti-detachment aluminium LED strip
- Outer cover: 1000D PVC
- Hardware: Stainless steel top pin
Customisation options
Colour / Finish: Olive green
Final colour, trim and private-label branding confirmed at order — MOQ and lead-time on request.
Technical Details
Hover a component to explore the build.
The 2nd generation 180° fan-shaped awning: aluminium double poles, an anti-detachment LED strip and only two adjustable legs to pitch.
Feature 1 of 5
Anti-Detachment LED Strip
The aluminium-housed strip locks into the arm channel, so the light stays put over corrugations and hard pack-downs.
Dimensions & Specs
Numbers you can plan around.
- Coverage180° fan-shaped
- Generation2.0 (with light)
- Fabric600D Oxford
- Outer cover1000D PVC
- Support poles2 adjustable, 1.2 mm wall, to 2.5 m
- Top pinStainless steel
- Packed size (2 m)212 × 20 × 20 cm
- N.W./G.W. (2 m)22.53 / 25.05 kg
- Packed size (2.5 m)262 × 20 × 20 cm
- N.W./G.W. (2.5 m)25.59 / 29.05 kg
Pricing
Pick a model, get a quick quote.
Prices in USD, EXW, excluding tax and freight. Volume discounts apply — send your quantity for a formal quotation.
| Select | Model | Size | Packed size | N.W. / G.W. | Price / unit |
|---|---|---|---|---|---|
| XRF18-22LED | 2.0 m | 211 × 20 × 19 cm | 19 / 21 kg | $291 | |
| XRF18-225LED | 2.5 m | 261 × 20 × 19 cm | 23.7 / 26 kg | $307 |
EXW price per unit. MOQ 20 pcs per model, samples welcome. Volume pricing and freight quoted with your order.
Choose your colour
Standard stock colours. Custom colourways available for OEM and ODM orders.
Add customisation
Tick what you need and send it straight to our team. Fees are confirmed with your quotation.
XRF18-22LED · 2.0 m · Olive green · 20 pcs
$291 × 20 = $5,820 USD
$5,820 USD
Indicative only. EXW, excluding tax, freight and customisation fees. We confirm the final price in your quotation.
Inquiry
Get pricing for XRF18-22LED.
B2B only. We'll respond within 24 hours with wholesale pricing, MOQ and freight estimates to your port.
