Awnings · Xtreme RoamForce / 90° Side Awning
Xtreme RoamForce XRF-9B12 Aluminum Shell Side Awning
Model XRF-9B12|Hard aluminium shell housing
Hard aluminium shell, 1.2mm frame, 2.5 m legs — the heavy end of the 90° range.
The XRF-9B12 is the aluminium shell version of our 90° car awning. Thicker 1.2mm wall tubing and a hard aluminium case make it the model to spec for rental fleets, outfitters and long overland tours — the closed shell travels quietly, keeps the canopy dry and takes corrugated roads without complaint. 420D black-coated Oxford canopy, 22/25mm aluminium poles, legs to 250 cm, six open sizes from 160×250 cm to 250×300 cm. Heavier at 16–22 kg, but built to keep working season after season.
- Hard aluminium shell housing
- 1.2mm wall aluminium alloy frame
- 420D black-coated Oxford canopy
- Six open sizes, 160×250 cm to 250×300 cm
- 16–22 kg gross weight per unit
Features
Engineered, not assembled.
Aluminium Shell
Closed hard case — quiet at highway speed and fully weather-sealed in transit.
1.2mm Frame
Thicker wall tubing for fleet and rental duty on rough roads.

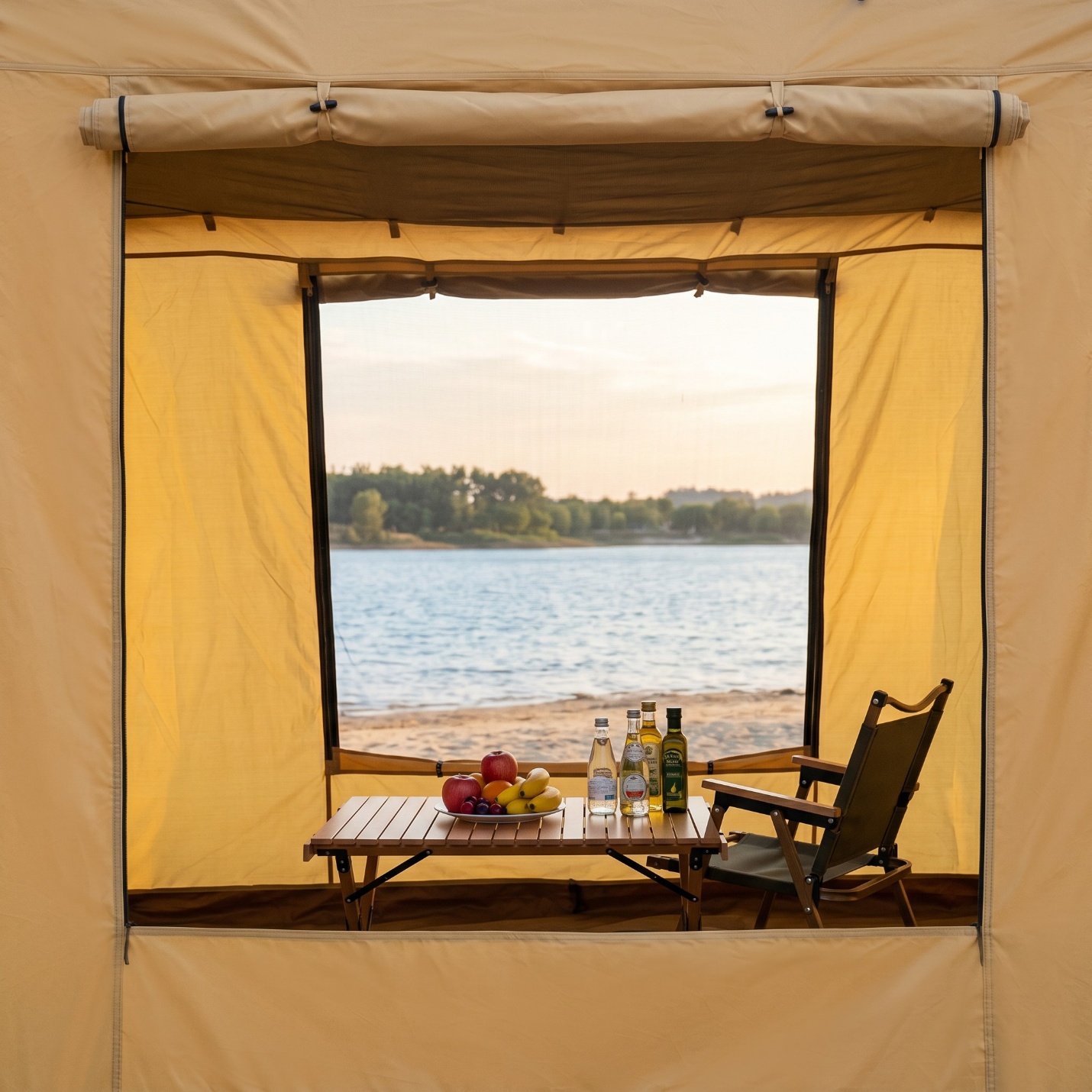

Black-Coated Canopy
420D Oxford with black coating for deeper shade and UV protection.
250 cm Legs
Taller open height clears roof racks and full-size pickup beds.
Specifications
Technical data.
Materials & construction
- Housing: Aluminium hard shell
- Frame: Aluminium alloy, 1.2mm wall
- Fabric: 420D black-coated Oxford, waterproof and water-repellent
- Poles: Aluminium 22/25mm
Customisation options
Colour / Finish: Olive green
Final colour, trim and private-label branding confirmed at order — MOQ and lead-time on request.
Pricing
Pick a model, get a quick quote.
Prices in USD, EXW, excluding tax and freight. Volume discounts apply — send your quantity for a formal quotation.
| Select | Model | Size | Packed size | N.W. / G.W. | Price / unit |
|---|---|---|---|---|---|
| XRF-9B12 | 160 × 250 × 250 cm | 176 × 17 × 16 cm | 16 / 17 kg | $152 | |
| XRF-9B12 | 200 × 200 × 250 cm | 216 × 17 × 16 cm | 18 / 19 kg | $160 | |
| XRF-9B12 | 200 × 250 × 250 cm | 216 × 17 × 16 cm | 18 / 19 kg | $168 | |
| XRF-9B12 | 200 × 300 × 250 cm | 216 × 17 × 16 cm | 19 / 20 kg | $176 | |
| XRF-9B12 | 250 × 250 × 250 cm | 266 × 17 × 16 cm | 21 / 22 kg | $184 | |
| XRF-9B12 | 250 × 300 × 250 cm | 266 × 17 × 16 cm | 21 / 22 kg | $192 |
EXW price per unit. Standard MOQ 50 pcs per model; MOQ is waived for sample orders. Volume pricing and freight quoted with your order.
Choose your colour
Standard stock colours. Custom colourways available for OEM and ODM orders.
Add customisation
Tick what you need and send it straight to our team. Fees are confirmed with your quotation.
XRF-9B12 · 160 × 250 × 250 cm · Black-coated (standard) · 20 pcs
$152 × 20 = $3,040 USD
$3,040 USD
Indicative only. EXW, excluding tax, freight and customisation fees. We confirm the final price in your quotation.
Inquiry
Get pricing for XRF-9B12 Side Awning.
B2B only. We'll respond within 24 hours with wholesale pricing, MOQ and freight estimates to your port.
