Awnings · Xtreme RoamForce 270° / Freestanding
Xtreme RoamForce 270° Freestanding Awning with LED Lighting
Model XSOD-CA0104|~11.5 m² of 270° UV-blocked shade
Wrap-around shade in under a minute — no forest of poles, no fuss.

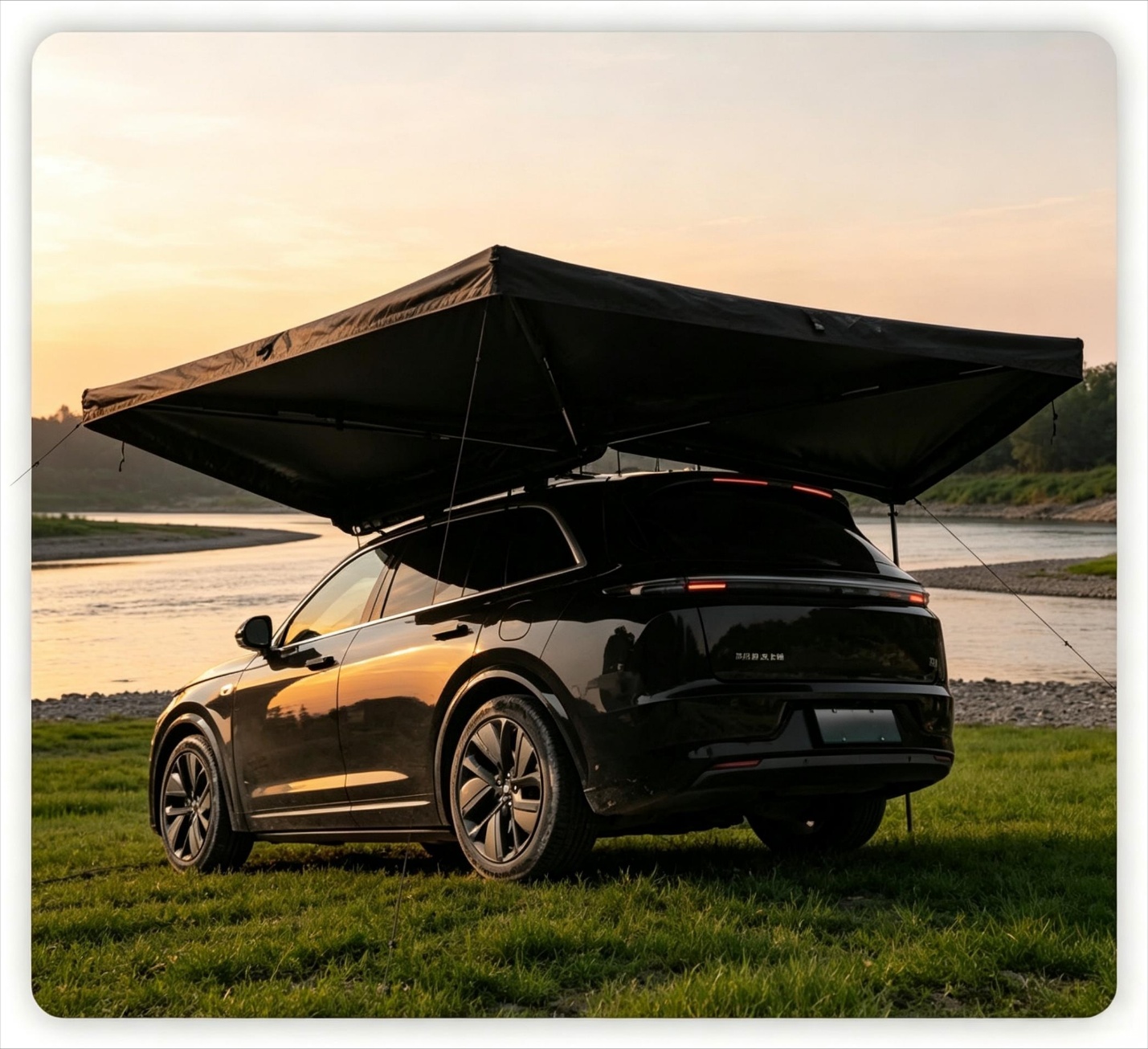

The Xtreme RoamForce is a factory-direct 270° freestanding awning built for real overlanding — long dirt-road days, exposed campsites, and the kind of weather that folds cheaper awnings in half. One person can swing it out in under 60 seconds, covering roughly 11.5 m² around the rear and side of the vehicle. Reinforced high-tensile aluminum arms, a heavy stainless pivot, 600D rip-stop Oxford with a silver UV-blocking underside, PU 3000mm heat-sealed seams, and a 1000D PVC transit bag that survives the road. Tri-color LED strips run inside the arms and plug into any USB power source. Available in LHS or RHS, universal roof-rack brackets included. OEM/ODM colours and private-label branding on request.
- ~11.5 m² of 270° UV-blocked shade
- Freestanding in light-to-moderate wind — poles optional
- Integrated tri-color LED lighting, USB powered
- 600D rip-stop Oxford, PU 3000mm heat-sealed
- LHS and RHS orientations
Features
Engineered, not assembled.
60-Second Deployment
One person, one motion. Unclip the transit bag, swing the arms out, tension the fabric — you're in the shade before the kettle boils.
Truly Freestanding
Reinforced box-section aluminum arms and a stainless pivot hold the canopy open in light-to-moderate wind. Save the support poles for exposed sites and storm nights.
Silver-Coated UV Shield
The 600D rip-stop underside carries a silver coating that blocks around 99% of UV and drops the temperature underneath by up to 8°C in full sun.
PU 3000mm Waterproof
Heat-sealed seams, not just stitched. Rain runs to the edge and drops clear of your camp kitchen instead of soaking through.

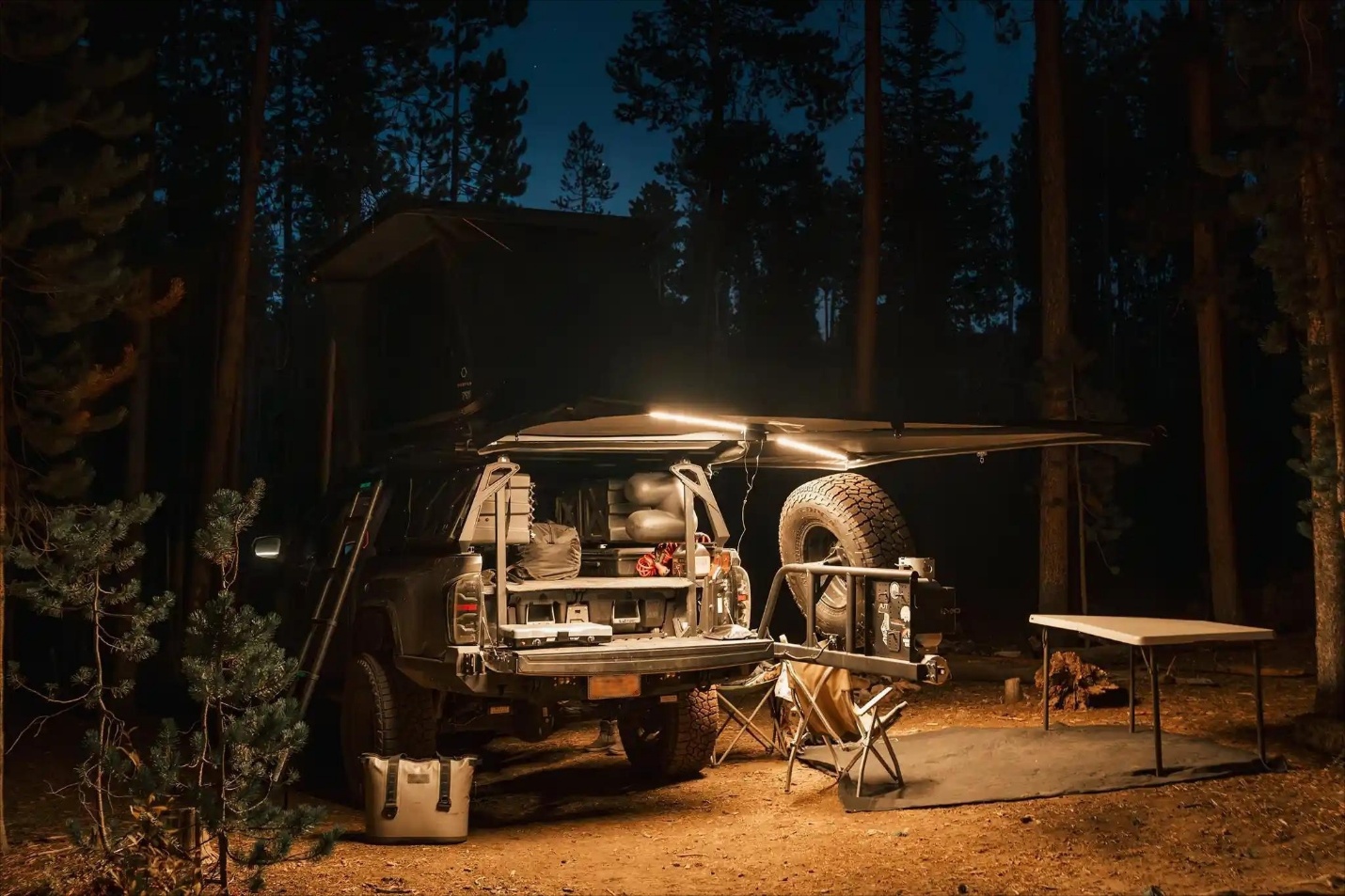

Integrated Tri-Color LED
Anti-drop LED strips embedded in the arms give you cool white, warm white and amber light — powered by any standard USB portable power station.

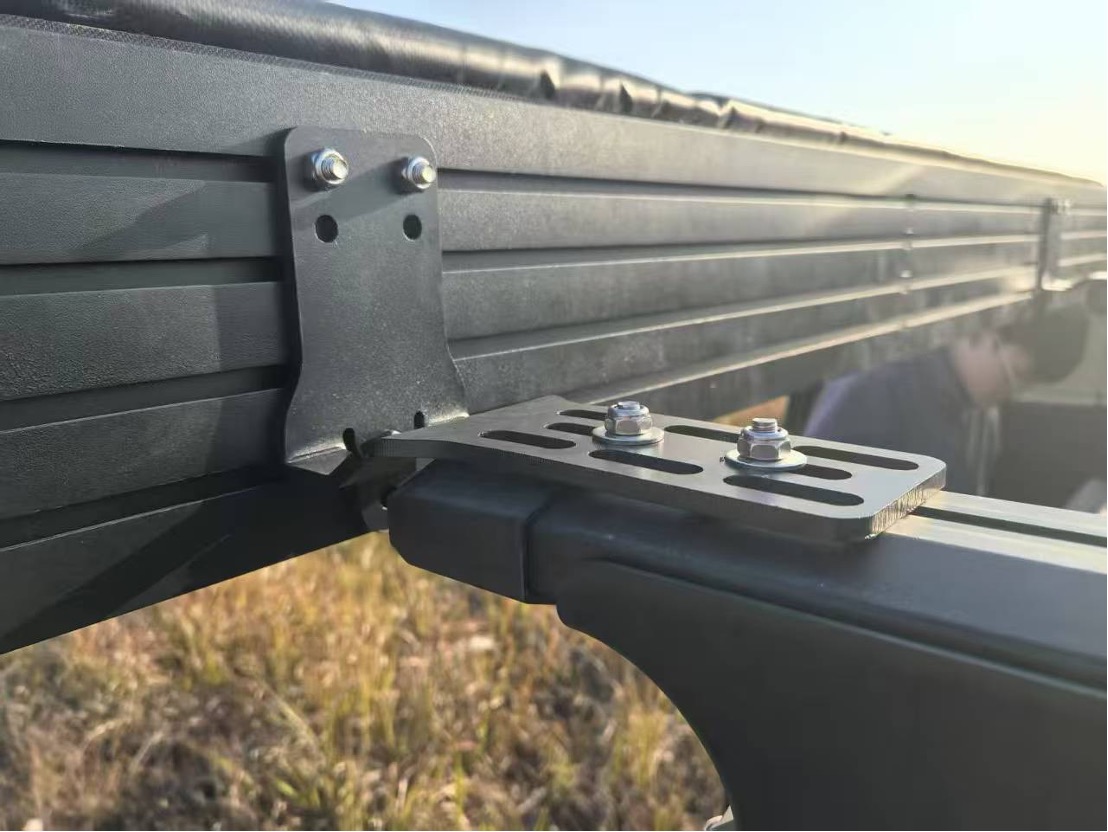

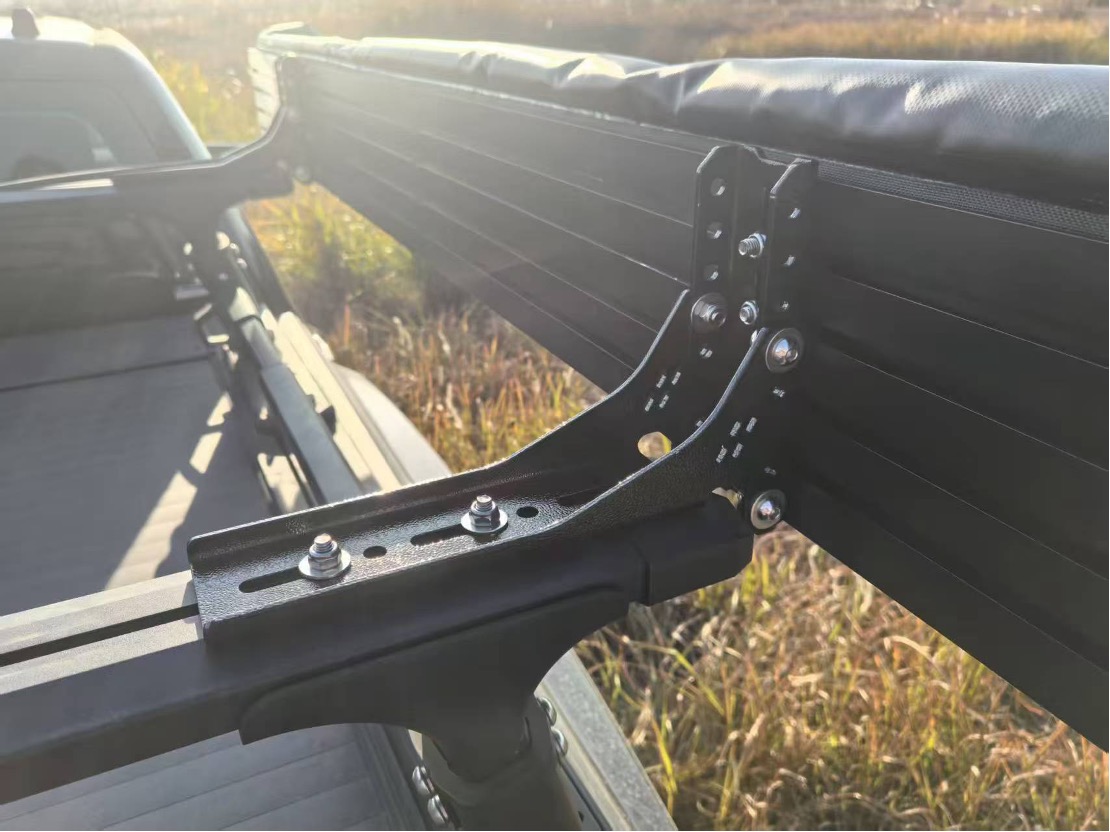

Universal Roof-Rack Fit
Heavy-duty bracket kit installs cleanly on Rhino-Rack, Front Runner, ARB, and standard T-slot or round crossbars.

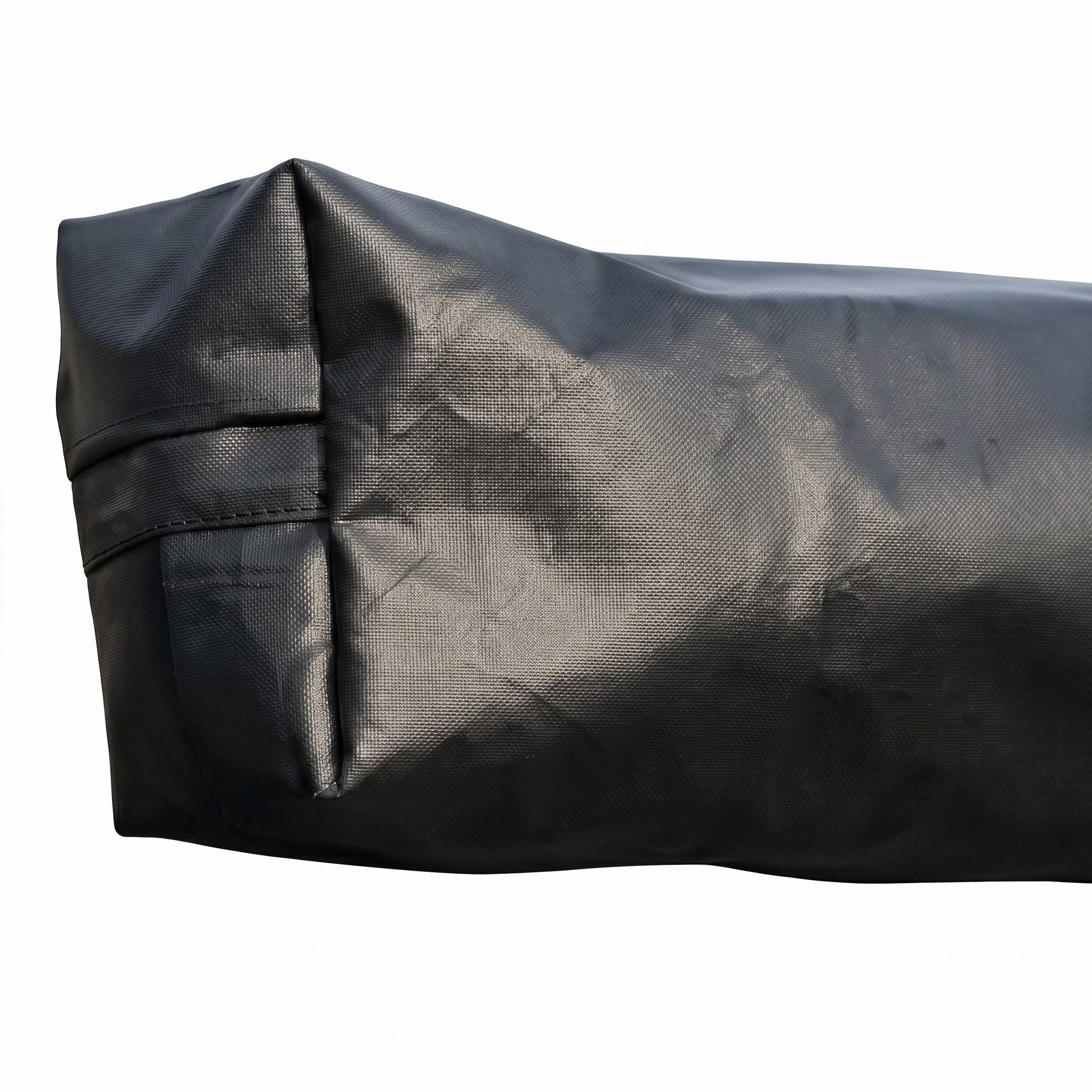

1000D PVC Transit Bag
UV-stabilized, abrasion-resistant, and cut close to the arms so it doesn't flap at highway speed. Dust and grit stay out.
Dealer-Ready Packaging
Factory-direct pricing, MOQ from 10 units, OEM/ODM colours and private-label branding on request. Available in LHS (driver side) and RHS (passenger side).
Specifications
Technical data.
Materials & construction
- Canopy: 600D rip-stop Oxford, silver UV coating, PU 3000mm
- Frame: Black powder-coated aluminum alloy, reinforced box-section arms
- Pivot: Machined stainless steel, oversized bearing
- Poles: 1.2mm fluted aluminum, adjustable to 2.5 m
- Ground contact: Stainless steel spikes
- Transit bag: 1000D PVC, UV-stabilized
- Lighting: Tri-color LED (cool white / warm white / amber), USB powered
Customisation options
Colour / Finish: Olive green
Final colour, trim and private-label branding confirmed at order — MOQ and lead-time on request.

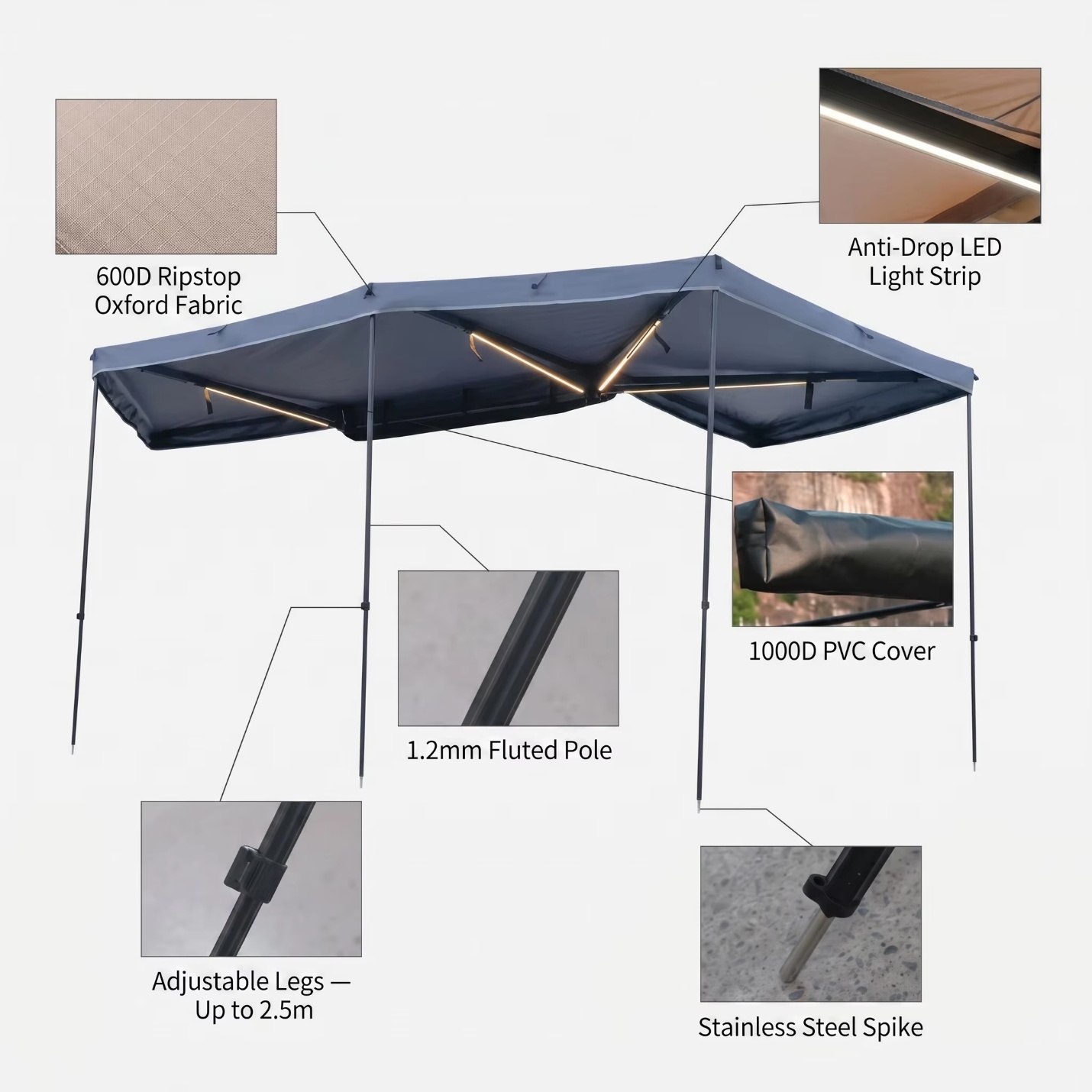

Technical Details
Hover a component to explore the build.
Every part of the 270° awning is spec'd for real overland use — heat-reflective fabric, integrated lighting, fluted alloy poles and stainless hardware.

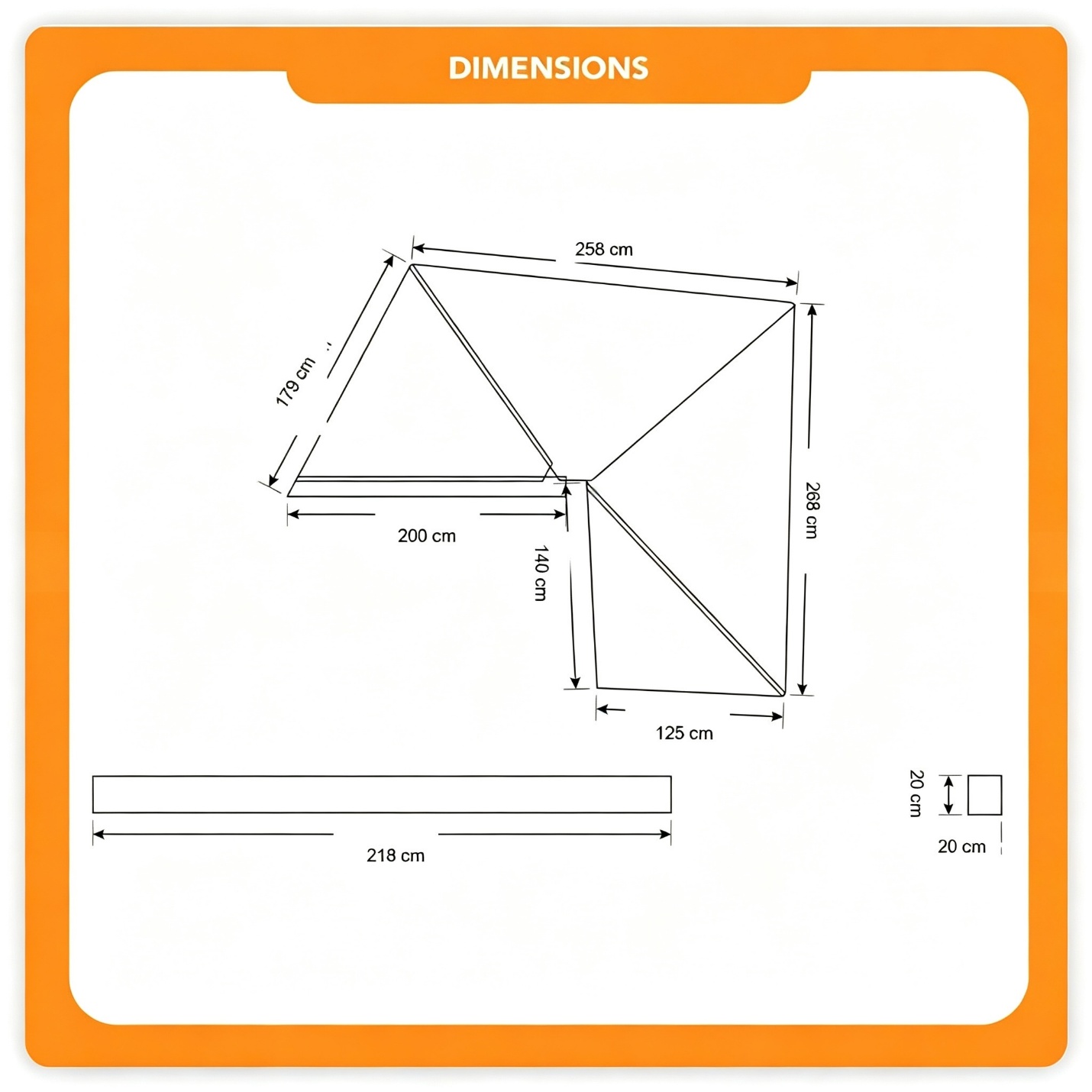

Dimensions
Full-coverage geometry.
A true 270° sweep off the side and rear of the vehicle — roughly 11.5 m² of shade with a clean, tensioned profile.
- Long side258 cm
- Rear side268 cm
- Front wing179 cm
- Depth200 cm / 140 cm
- Rear extension125 cm
- Packed size218 × 20 × 20 cm
Pricing
Pick a model, get a quick quote.
Pick your model, colour and quantity below and send it straight to our team. We reply with EXW pricing, MOQ and freight to your port within 24 hours.
| Select | Model | Size | Packed size | N.W. / G.W. | Price / unit |
|---|---|---|---|---|---|
| XSOD-CA0104 | Xtreme RoamForce 270° Freestanding — with LED | ~20 × 20 cm cross-section | 22.8 kg | On request |
Wholesale pricing is quoted per order. Standard MOQ 20 pcs per model; samples welcome.
Choose your colour
Standard stock colours. Custom colourways available for OEM and ODM orders.
Add customisation
Tick what you need and send it straight to our team. Fees are confirmed with your quotation.
XSOD-CA0104 · Xtreme RoamForce 270° Freestanding — with LED · Olive green · 20 pcs
Quoted on request
Indicative only. EXW, excluding tax, freight and customisation fees. We confirm the final price in your quotation.
Inquiry
Get pricing for Xtreme RoamForce 270°.
B2B only. We'll respond within 24 hours with wholesale pricing, MOQ and freight estimates to your port.
Related products
Description
More about Xtreme RoamForce 270°.
Introduction: Engineering the Perfect Camp Perimeter
When the trail gets long and the sun gets high, efficiency is everything. The Xtreme RoamForce 270° Freestanding Awning is designed for those who value setup speed without sacrificing structural integrity. Engineered to deploy in under 60 seconds, this massive wrap-around shelter provides over 11 square meters of UV-protected living space. Whether you're setting up a quick lunch spot or establishing a permanent expedition basecamp, the Xtreme RoamForce provides the rugged, freestanding reliability that serious overlanders demand.
The Freestanding Advantage: No Poles, No Hassle
Most 270-degree awnings require a forest of support poles to stay upright. Our advanced engineering allows the Xtreme RoamForce to remain fully freestanding in light-to-moderate wind conditions.
- Reinforced Alloy Framework: The support arms are constructed from high-tensile aluminum with reinforced box-sections, providing the lateral strength to hold its own against gravity and gusts.
- Heavy-Duty Pivot Point: The heart of the awning is a massive stainless steel pivot assembly, ensuring a lifetime of smooth deployments without the "sag" common in budget alternatives.
All-Weather Material Science
We’ve chosen materials that can withstand the abrasive reality of desert sand and mountain storms.
- 600D Rip-stop Oxford: The heavy-duty canopy is treated with a specialized silver coating on the underside, blocking 99% of harmful UV rays and reducing the temperature beneath the awning by up to 8°C.
- PU3000MM Waterproofing: Every seam is factory heat-sealed. Rain beads off the surface instantly, ensuring your camp kitchen and lounge area remain bone-dry in sudden downpours.
- 1000D PVC Transit Bag: When you’re on the move, the awning is protected by a UV-stabilized, heavy-duty storage bag, keeping dust and moisture away from the fabric.

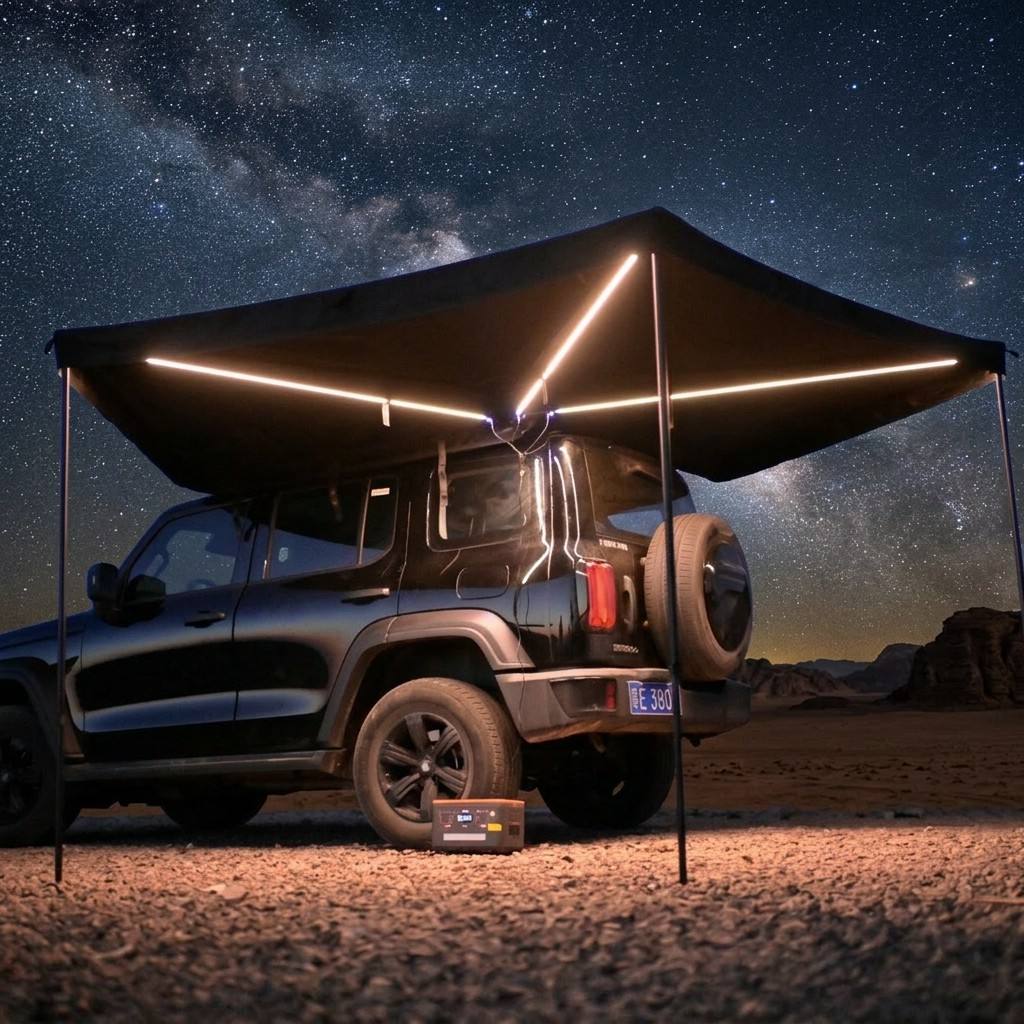

Expedition Extras: Built-In LED Ecosystem
Nighttime camp tasks are simplified with our Integrated LED Lighting System.
- Seamless Integration: Three-color LED strips (Cool White, Warm White, and Amber) are embedded directly into the support arms.
- Plug-and-Play Power: Powered via a standard USB lead, you can run your camp lights off any portable power station or vehicle USB port.
Frequently Asked Questions (FAQ)
Q: Can I use this awning in heavy winds without the poles?
A: While the Xtreme RoamForce is designed to be freestanding in light-to-moderate conditions (up to 15-20 mph), we always recommend deploying the integrated support poles and guy-ropes in heavy winds or storm conditions to prevent structural damage.
Q: Does the silver coating actually reduce heat?
A: Yes. The specialized silver backing reflects a significant portion of solar radiation, keeping the area beneath the awning up to 8°C cooler than the ambient air temperature in direct sunlight.
Q: Is it compatible with my roof rack?
A: The awning includes a universal heavy-duty bracket kit designed to fit most standard T-slot roof racks, flat platforms (like Rhino-Rack or Front Runner), and traditional crossbars.
Master the Elements.
Order the Xtreme RoamForce 270° Awning and turn your vehicle into a professional-grade basecamp.
